Homemade trackbar setup

Post by MidwayJeremy » Thu Mar 25, 2010 1:01 am

Ok so Ive broke ENOUGH trackbars and decided to build a almost bomb proof one!

So I ordered

1.5x.250DOM wall tubing like 3ft
Tube ends for 7/8 shank rod ends
3/4 hole 7/8 Shank QA1 Rod ends
Axle mount Track bar mount with front offset from Ballistic Fab
Adjustable Trackbar Frame mount also from Ballistic Fab

So only real thing I need to worry about is I need to make sure track bar and drag link is parallel and I should get no death wobble right?

All brackets will be welded on and trackbar will be bolted with Grade 8 3/4 bolts....

Anything else I need to remember or do?
2000 WJ LIMITED V8 2in BBS, 265/75/16, K&N INTAKE, KOLAK EXHAUST, IRON ROCK SLIDERS, JKS DISCO's, D44a AUSSIE LOCKER ..DAILY DRIVER.
992 JEEP XJ, 4.0L, NP231 sye, 4.56, 8.8 Lockright D30 Aussie 9" Lift RockKrawler LA's and 38s TSLs

User avatar
Vec
Post Whore
Posts: 4272
Joined: Tue Jan 29, 2008 4:48 pm
Vehicle: 01 TJ
Location: Texas

Re: Homemade trackbar setup

Post by Vec » Thu Mar 25, 2010 7:12 am

this should be interesting...

keep us posted.
En este mundo hay dos tipos
Los de armas cargadas y los que cavan

User avatar
wearethebucs
Web Wheeler
Posts: 2485
Joined: Mon Jul 07, 2008 9:45 pm
Vehicle: 79' cockeyed garage ornament
Location: Morgantown, WV
Contact:

Re: Homemade trackbar setup

Post by wearethebucs » Thu Mar 25, 2010 6:27 pm

I'm staying tuned to this one. I need to build a bombproof track bar for my CJ and wasn't a 100% sure on how to go about it.
38+ Class- 79' CJ-5 yard ornament
79' CJ-7 with every bolt on from JCWhitney possible/KOH Rig
2000 F-250
If it ain't leakin' it must be empty.

Ricers are like penguins...small, slow, and have useless wings.

nitecop
Bullet Proof
Posts: 1386
Joined: Tue Jan 29, 2008 8:59 am
Location: The great state of Ohio!!

Re: Homemade trackbar setup

Post by nitecop » Thu Mar 25, 2010 8:15 pm

MidwayJeremy wrote:Ok so Ive broke ENOUGH trackbars and decided to build a almost bomb proof one!

So only real thing I need to worry about is I need to make sure track bar and drag link is parallel and I should get no death wobble right?
....
Anything else I need to remember or do?
Bump steer is what you have if the two links are NOT paralell.
DW is almost always from something loose or out of balance.
Real men don't wear Bowties

99 TJ Sahara 4.0 5-Sp Trail Rider
06 LJ 4.0L six speed My DD
90 XJ Project F-XJ (Ford-eXtreme-Jeep!!)
94 F700 U-RV RV+Tow rig 5.9Lcummins /6 sp
77 F150 351M4x4 not stock 4-Sp (farm/Tow Mule)

User avatar
MidwayJeremy
Curb Crawler
Posts: 800
Joined: Sun Aug 17, 2008 12:13 pm

Re: Homemade trackbar setup

Post by MidwayJeremy » Fri Mar 26, 2010 10:14 am

Vec wrote:this should be interesting...

keep us posted.
Why you say that?
Vec you have no faith......lol

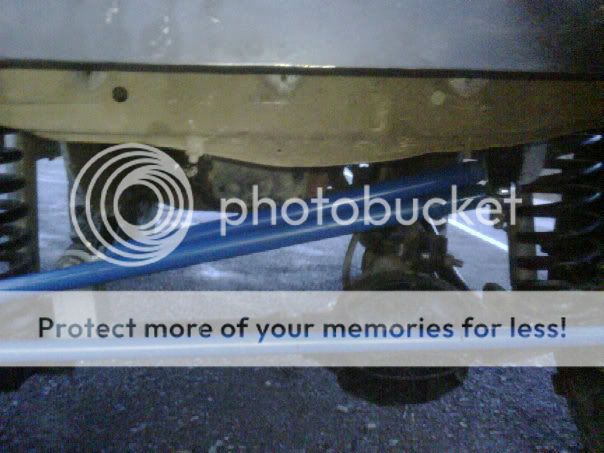

Here is setup Im going with...except my pass side will mount to axle right beside coil spring and mount is offsetted to front of jeep almost 1-1.5"

Also Mine will be adjustable at both ends and yes ill make sure drag link and track bar is parallel
Thanks Nitecop!
2000 WJ LIMITED V8 2in BBS, 265/75/16, K&N INTAKE, KOLAK EXHAUST, IRON ROCK SLIDERS, JKS DISCO's, D44a AUSSIE LOCKER ..DAILY DRIVER.
992 JEEP XJ, 4.0L, NP231 sye, 4.56, 8.8 Lockright D30 Aussie 9" Lift RockKrawler LA's and 38s TSLs

User avatar
MidwayJeremy
Curb Crawler
Posts: 800
Joined: Sun Aug 17, 2008 12:13 pm

Re: Homemade trackbar setup

Post by MidwayJeremy » Fri Mar 26, 2010 10:38 pm

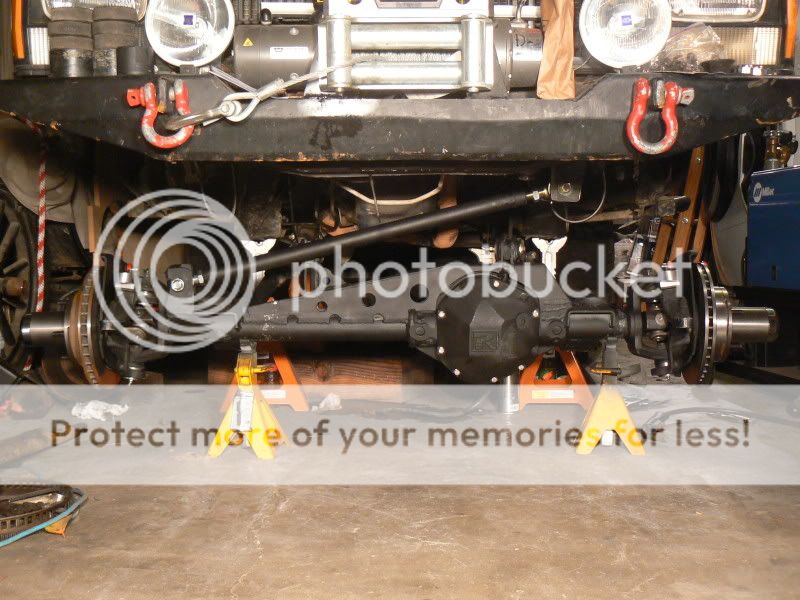

So I didnt get many pics but I will tom in day light...
2000 WJ LIMITED V8 2in BBS, 265/75/16, K&N INTAKE, KOLAK EXHAUST, IRON ROCK SLIDERS, JKS DISCO's, D44a AUSSIE LOCKER ..DAILY DRIVER.
992 JEEP XJ, 4.0L, NP231 sye, 4.56, 8.8 Lockright D30 Aussie 9" Lift RockKrawler LA's and 38s TSLs

User avatar
jeepers
Bullet Proof
Posts: 1854
Joined: Tue Jan 29, 2008 1:20 pm
Location: Belle W.V

Re: Homemade trackbar setup

Post by jeepers » Fri Mar 26, 2010 10:44 pm

Looks good. Why blue though lol
96 XJ long arms, lockers and 35's--RIP
93 S-10 LSX powered (under construction)
98 2500 tow rig
The white thing on the left

User avatar
MidwayJeremy
Curb Crawler
Posts: 800
Joined: Sun Aug 17, 2008 12:13 pm

Re: Homemade trackbar setup

Post by MidwayJeremy » Fri Mar 26, 2010 10:47 pm

I dunno just wanted to be diff....went for the ICY look lol to match snow camo...lol
2000 WJ LIMITED V8 2in BBS, 265/75/16, K&N INTAKE, KOLAK EXHAUST, IRON ROCK SLIDERS, JKS DISCO's, D44a AUSSIE LOCKER ..DAILY DRIVER.
992 JEEP XJ, 4.0L, NP231 sye, 4.56, 8.8 Lockright D30 Aussie 9" Lift RockKrawler LA's and 38s TSLs

User avatar
jeepers
Bullet Proof
Posts: 1854
Joined: Tue Jan 29, 2008 1:20 pm
Location: Belle W.V

Re: Homemade trackbar setup

Post by jeepers » Fri Mar 26, 2010 10:57 pm

Have you driven the jeep anywhere with that track bar yet? Any bump steer, wobbles or binding through flex? I'm probably going to do something similar this summer.
96 XJ long arms, lockers and 35's--RIP
93 S-10 LSX powered (under construction)
98 2500 tow rig
The white thing on the left

User avatar
MidwayJeremy
Curb Crawler
Posts: 800
Joined: Sun Aug 17, 2008 12:13 pm

Re: Homemade trackbar setup

Post by MidwayJeremy » Fri Mar 26, 2010 11:39 pm

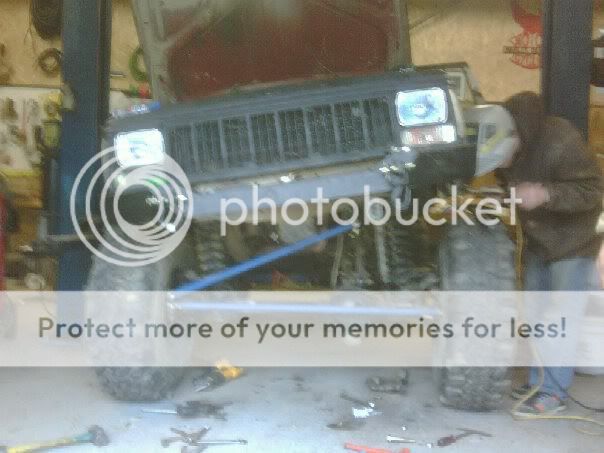

I drove it home but couldn't really get going fast because I got something binding in axle housing and making clunking noise when I turn but it def seems more sturdy haven't got a chance to flex it or anything yet I'm curious to see how it acts too
